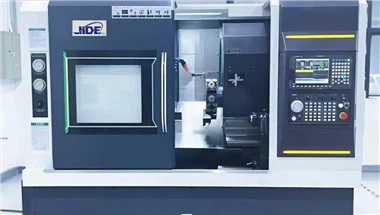

Heavy Duty Cnc Lathe Machine





The Heavy duty cnc lathe machine  body of the slant bed is imitated by the computer, the structural deformation is reduced to a minimum, and the rigidity is sufficient to absorb the resonance so that can get the best machined surface.

Spindle bearings with high- speed bevel angle ball bearings, the maximum speed of 4000rpm,most suitable for copper, aluminum processing and die casting processing.





Each heavy duty cnc lathe machine  essential detection method before out of factory, RENISHAW laser pitch correction Spectrum / balance analyzer, round test instrument and so on and it use servo turret: Taiwan's SWIFT 12 tools servo turret,(Optional:8 tools ), With ultra-fast speed, high precision. Tool change time The maximum distance tool change in less than 0.3 seconds.



Features of wire layout: JIDE adopts backline type wiring, with convenient operation, increased stability, longer service life



Turning and milling functions



The machine model with "M" after the milling function, Maximum milling speed: 6000rpm Maximum power: 3.7kw





Machine parameter



Item	unit	JD-460	JD-560	JD-680
Swing over bed	mm	580	650	780
Processing dia	mm	300	350	410
chuck size	inch	8	10	10
Spindle Nose		A2-6	A2-8	A2-8
max processing length	mm	530	680	1000
X axis travel	mm	230	280	340
Z axis travel	mm	560	720	1120
Y axis travel	mm	-	-	-
S aixs travel	mm	-	-	-
Spindle speed	mm	4000	1800	1800
Spindle power	KW	7.5/11	15/18.5	15
Spindle hole through dia	mm	52	65	65
Rapid feedrate（ X/Z/Y/S ）	M/min	36/36	32/32	30/30
Tools no	pcs	12	12	12
Tailstock travel	mm	500	600	500
tailstock model		MT-5	MT-5	MT-5
Control system		FANUC 0i TF



STANDARD ACCESSORIES



1.Total Splash Guard 2.X/Zaxis linear guideways 3.Taiwan Hinwin/PMI ball screw 4.Cutting cooling system 5.Central auto-lubrication system 6..Heat exchanger for electric cabinet 7.Manual pulse generator 8.RS232C Interface 9.Working light 10.Indicator light of pause and completion 11.Automatic switched off power supply M30 12.Basic tool box 13.Leveling bolts and blocks 14.Hydraulic chuck 15.Soft claw 16.Hydraulic tailstock 17.12-station servo turret
